SKU# FSN130
EVERWIN FSN130 5-1/8" NAILER
UPC Code: 191399000815 EVERWIN FSN130 5-1/8" NAILER CA$944.96/EAProduct Overview
The FSN130 is built to fire round head plastic collated strip nails up to 130mm, with a shock-proof magazine pad that absorbs excessive vibration on each cycle and a shock absorbent side handle for greater control and accuracy.
Key Features
- - DEPTH OF DRIVE ADJUSTMENT
- - OPEN NOSE DESIGN For easy extraction of a jammed nail
- - HIGH SPEED OPERATION Fast cycle time boosts efficiency
- - SUFFICIENT DRIVING ENERGY Powerful for heavy duty applications
- - METAL BODY PROTECTOR Helps prevent drag and tear wear on the tool frame
- - CUSHIONED GRIP AND ERGONOMIC FRAME Provides Comfort during Operation
- - DURABLE MAGAZINE Ductile aluminum extrusion magazine
- - VIBRATION MINIMIZED Patented shock-proof magazine pad
- - AUX SIDE HANDLE Shock-absorbent auxiliary side handle
Product Documents
FEATURES
DURABLE MAGAZINE
Ductile aluminum extrusion magazine
AUX SIDE HANDLE
Shock-absorbent auxiliary side handle
VIBRATION MINIMIZED
Patented shock-proof magazine pad
HIGH SPEED OPERATION
Fast cycle time boosts efficiency
FLEXIBLE TRIGGER OPTIONS
Available with contact fire trigger
SUFFICIENT DRIVING ENERGY
Powerful for heavy duty applications
METAL BODY PROTECTOR
Helps prevent drag and tear wear on the tool frame
OPEN NOSE DESIGN
For easy extraction of a jammed nail
TOOL SPECIFICATION
| Weight | 6.1 kgs (13.5 lbs) |
|---|---|
| Height | 478mm (18.8") |
| Width | 145mm (5.7") |
| Length | 523mm (20.6") |
| Operating Pressure | 5~8 bar (70~120 psi) |
| Driving Power (in-lbs @100psi) | 1811 |
| Air Consumption (L/sec @90psi) | 3.5 (7.4 cfm) |
FASTENER SPECIFICATION

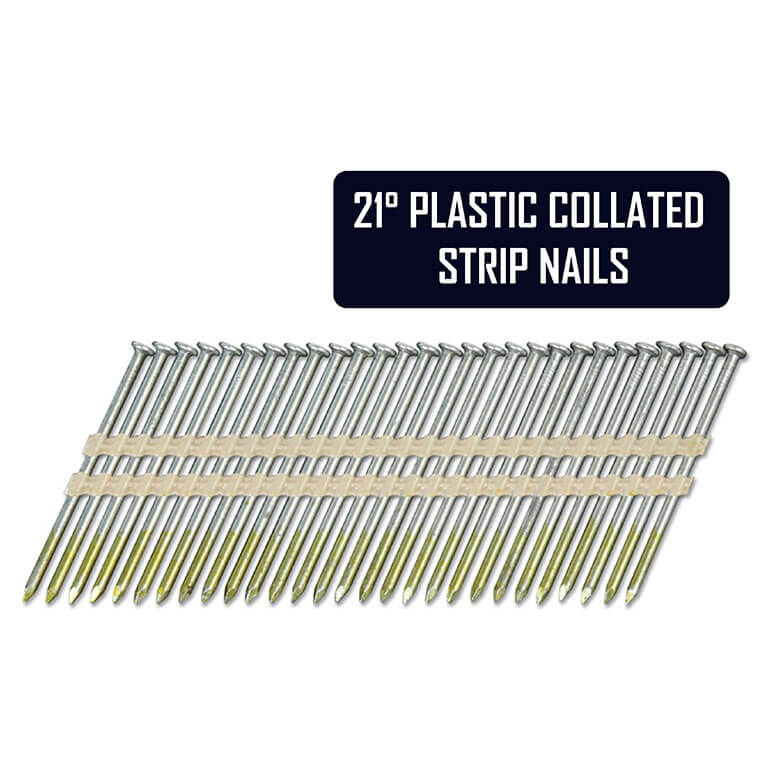

| Type | 21° Plastic Collated Nails |
|---|---|
| Loading Capacity | 60 |
| Shank Type | Smooth, Screw or Ring |
| Nail Length | 90~130mm (3-1/2"~5-1/8") |
| Nail Head Dia. | 7.7~8.5mm (0.303"~0.334") |
| Nail Shank Dia. | 3.8~4.2mm (0.148"~0.165") |
