Main 1 - FULL EXTENSION SLIDE 450MM [18"]
ZINC (2) -

Main 2 - FULL EXTENSION SLIDE 450MM [18"]
ZINC (2) -

SKU# T46322G18

FULL EXTENSION SLIDE 450MM [18"] ZINC (2)

UPC Code: 773199340010 FULL EXTENSION SLIDE 450MM [18"] CA$39.49/EA

QTY:

33 Available

Overview
Documents

Product Overview

Introducing the 3732, an extra-low-profile side-mount drawer slide.

Available in your choice of clear zinc, black, or white finishes, the 3732 model is most popular for office storage solutions but will also bring its smooth and silent motion to box drawers in kitchens and bathrooms and many other applications.

Key Features

Supports loads up to 100 lbs
For drawers up to 16 in wide
Applications: Commercial, residential, kitchen
Features: Hold-in detent, unhanded latch disconnect, front face frame mounting hole
Mounting: Side
Extension: Full
Capacity: 100 lbs per pair (based on an 18 in slide)
Action: Steel ball bearings

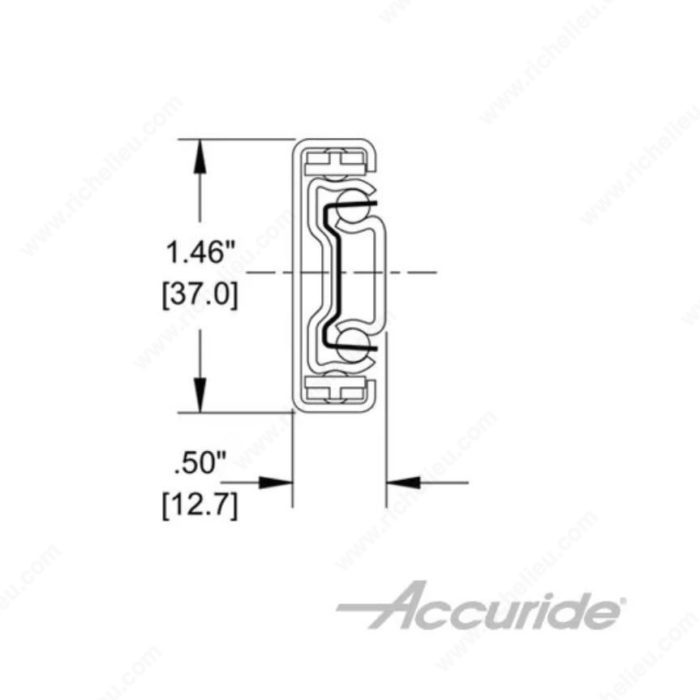

Required space: 0.50", plus 1/32", minus 0.00''

Product Documents

Pack Quantity

The quantity that makes up a standard package.

You must order in units of this quantity.

Items are sold in Gross and Pieces.

Example: Package quantity

.3333 gross enter .3333
10 gross enter 10 or 20, 30 etc.
72 pieces enter 72 or 144, 216 etc.

Please note: 1 gross = 144 pieces.

Pack Quantity	Pieces
0.0208	3
0.0417	6
0.0555	8
0.0625	9
0.0694	10
0.0833	12
0.1041	15
0.1111	16
0.1250	18
0.1389	20
0.1667	24
0.2083	30
0.2222	32
0.2500	36
0.2778	40
0.3333	48
0.4166	60
0.5000	72
0.6667	96
0.7500	108
1.3333	192
1.5000	216
1.6667	240
