SKU# UC79M850180
HINGE CLIP w/ SPRING BI-FOLD
UPC Code: 773199113232 HINGE CLIP w/ SPRING BI-FOLD CA$18.65/EAProduct Overview
Blum is a leading supplier in functional hardware.

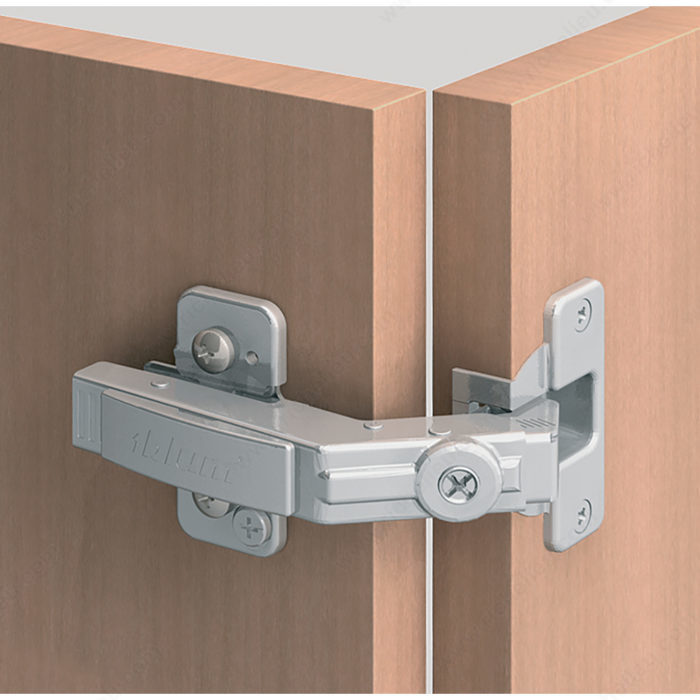

This Clip hinge offers a 60° opening and is specially designed for bifolding door projects for corner cabinets.
It is ideal for optimizing storage space and accessibility for corner kitchen cabinets.
This hinge offers a quick and easy depth adjustment thanks to its adjustable cam.
This Clip hinge offers a 60° opening and is specially designed for bifolding door projects for corner cabinets.
It is ideal for optimizing storage space and accessibility for corner kitchen cabinets.
This hinge offers a quick and easy depth adjustment thanks to its adjustable cam.
Key Features

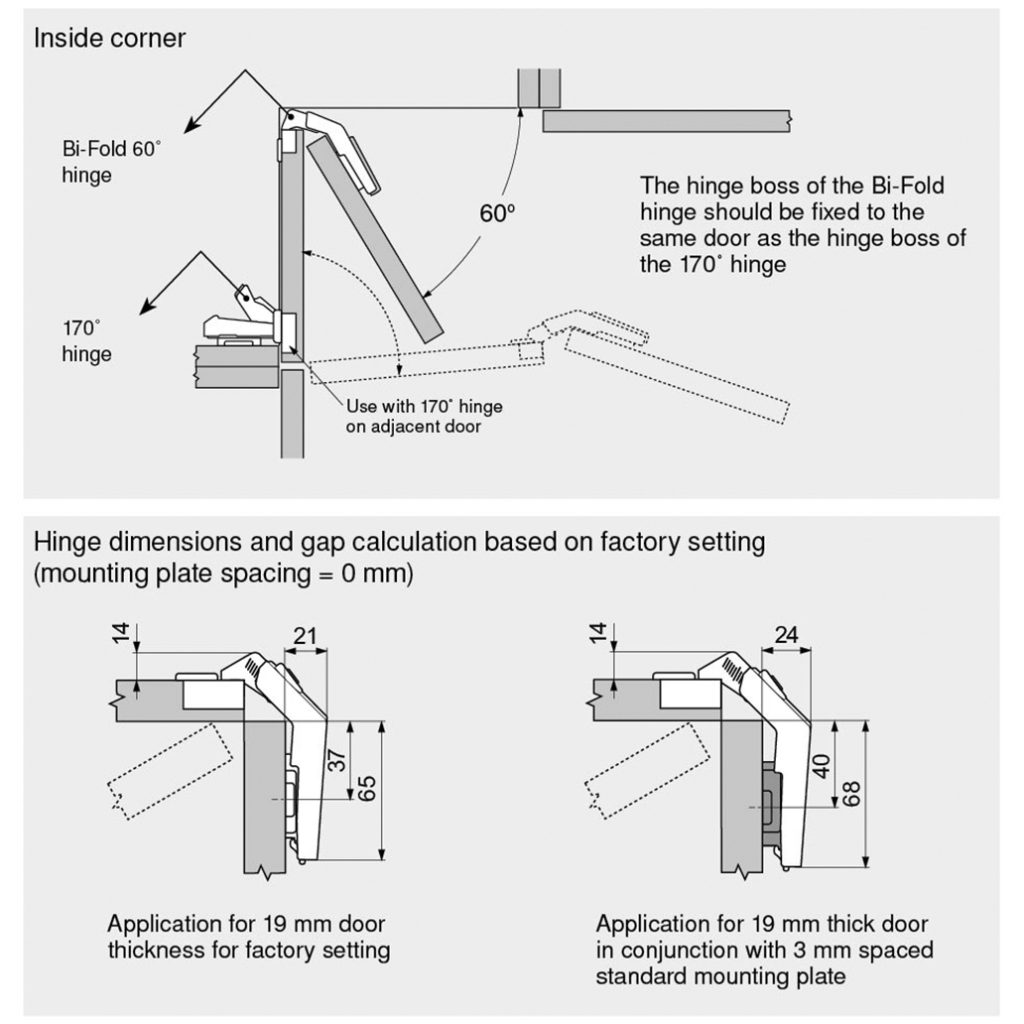

- Special hinge for corner cabinet with folding doors
- For door thicknesses of 15-23 mm, factory setting for factory setting for 19 mm
- In combination with 155° or 170° hinge
- CLIP top with automatic closing (spring)
- Opening angle 60
- 3-dimensional face adjustment
- Comfortable depth and clearance adjustment by means of endless screw
- Tool-free assembly and disassembly of the door on the furniture carcass
